The ALCO DL-109 was one of the six A1A-A1A passenger diesel locomotives built between 1939 and 1945.

DL-109

History Edit

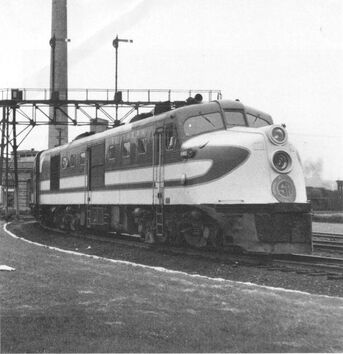

5077.1167548400

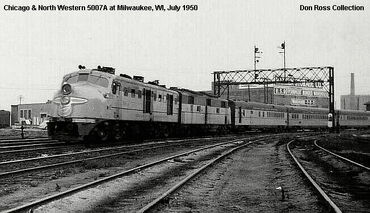

Nw5007a
Rrfair4852
Sk50
Old Maude in 1958

The concept that would become the DL-109 started with the DL-103b which was 4 ft longer and had the radiators located together. It was built with a twin 6 cylinder ALCO 539T prime mover. Every model after made minor improvments to the design and hardware of the engine. The apex of the engine design was the DL-109 which grossed 62 units sold.

The New Haven railroad was known for their use of these engines on several of their premier trains. These engines replaced the famous Hudsons.

The engines began being replaced by the more powerful and reliable EMD E units by the mid 1950's. The last DL-109 was scrapped in 1969.

All models developed 2,000 hp (1,490 kW). The first unit built as ALCO Specification DL-103b was 4 ft 5 in (1.35 m) longer than the other cab units, and became Chicago, Rock Island and Pacific Railroad #624. The DL-103b had the two radiator sections positioned together at the end of the carbody, while all other units had a split radiator arrangement with one placed at the back of the unit and one situated in the middle. The DL-103b was built with twin 6-cylinder ALCO 538T Diesel engines as prime movers; all other DLs in this series were built with the newer twin 6-cylinder ALCO 539T Diesel engines. The DL-103b also had all-electric driven accessories, while the later models had belt-driven accessories. The differences between all subsequent models were minor. The DL-105s went to the Rock Island as #622 and GM&O #270-271. All other early customers got DL-107 cab units and DL-108 boosters until the first DL-109 was delivered to the New Haven. During the war, the Gulf, Mobile & Ohio and Southern Railway bought DL109s and the Southern bought the only DL-110. It is not known whether this is because the model was a significant improvement, was the model approved for wartime production, or both.

The New York, New Haven and Hartford Railroad received special permission from the War Production Board to purchase #0710–#0759 as dual-use (passenger/freight) locomotives; they were built between 1942& nd1945. Passenger-only locomotives (including the rival EMD E6) were not approved for production during this time. The first 10, #0700–#0709, were delivered right after the attack on Pearl Harbor in December 1941 from ALCO's Schenectady factory, allowing the road to prove their freight-hauling abilities just in time. The New Haven owned the most DL-109s, rostering 60 units in 1945.

There were three classes among the New Haven units noting some differences between the manufacture of each batch. The DER-1a (Diesel-Electric Road) units #0700–#0709 had the original design with a mass of vents on the roof, while the DER-1b (#0710–#0749) and DER-1c (#0750–#0759) had the simplified winterization hatches instead. The New Haven DL-109s could be found hauling passenger trains during the day and freight trains at night. The class was rebuilt once, replacing the plywood sides, removing the decorative side windows in favor of a steel screen, and several other changes.

Two DL-109s received a special rebuild to make them able to "MU" (multiple unit) with more than one other unit; originally, they only had the MU cables on the rear, meaning that only a back-to-back pair could be made. The two special units had cables put on the front so they could be used to make a 3-unit set for longer trains. One of the units had the nose rebuilt with an access door, raising the headlight and changing the contour of the nose. In the Winter of 1953 to 1954 New Haven A-A-A units #720-722 with #0721 in the lead could be seen in far northern Maine on the Bangor and Aroostook Railroad, helping haul massive tonnage of potatoes, usually in the now Famous Red White and Blue "State of Maine" products reefers. These were leased by The BAR.

The DL-109s eventually ran their last miles in the late 1950s in local commuter service around Boston. One special unit was retained through the 1960s in Boston as a power plant; PP-716 was converted to produce power for a test third rail in Boston. Eventually PP-716 became the last DL-109 on the face of the Earth and fell to the scrappers torch under the Penn Central at Dover Street Yard, in June 1969.

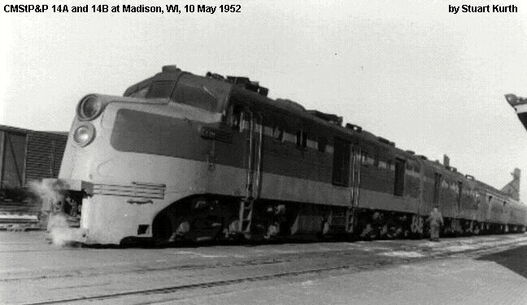

The DL-109s of the other railroads were primarily scrapped during the 1950s. The Rock Island had rival builder EMD repower their newest, the #621, but this doesn't seem to have extended its career greatly. One notable pair on the Milwaukee Road lived charmed lives. Units #14A, B were delivered in October 1941, and paired up to run the Chicago-Minneapolis Afternoon Hiawatha and overnight Fast Mail back to Chicago. The units, along with EMD E6 #15A, B performed wonderfully during World War II with consists of Hiawathas expanding up to 20 cars and standing room only. The paint scheme was designed by Otto Kuhler, who had designed most of the 1938 Hiawatha and Milwaukee Road class F7 'Baltic' or 'Hudson' 4-6-4 locomotives. It had a yellow stripe up the nose and torpedo flank orange belts on the mostly grey body. This scheme did not last, and it was painted to resemble the other passenger unit EMD E6, #15A, B with the lightning bolt/grey scheme. After the War, they were repainted into the FM Erie-built locomotive scheme, and then in 1950, the Hiawatha orange-maroon band with black roof scheme.

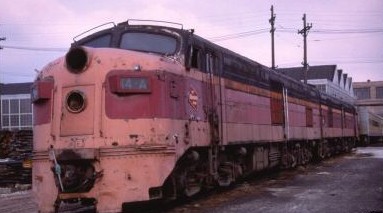

The units on the Milwaukee logged over 3 million miles by 1953, and were overhauled. The electric motors and prime movers were sent to Alco for rebuilding, and the shopmen at the Milwaukee Road's Menomonee Valley shops rebuilt the locomotives. They came out of the shops with facelifts, with the addition of EMD bulldog noses, and changed appearance, which made them look like an EMD locomotive. The units then worked on secondary lines to Canton, South Dakota Green Bay, Wisconsin and Madison-Chicago trains until retirement; #14B was finally scrapped at Jones Island in Milwaukee in May 1964. The Milwaukee employees called #14A "Old Maude."
