Brake gauges

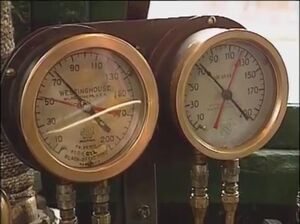

Brakes Gauges of a Steam Engine

The Brake Gauge is a special gauge that are seen in lots of different locomotives.

The Brake Gauge are design to tell the engineer of how much pressure the brake cylinders on the locomotives.

Each of the gauges have red and black hands to tell the engineer how much pressure are in the brakes.

In the Steam locomotives each brake gauge looks like are round with numbers and a pointer like that of the hands on a clock face they are always seen in the cab.

In some electric and diesel locomotives the almost look like that same thing and they sometimes look like wristwatches.
